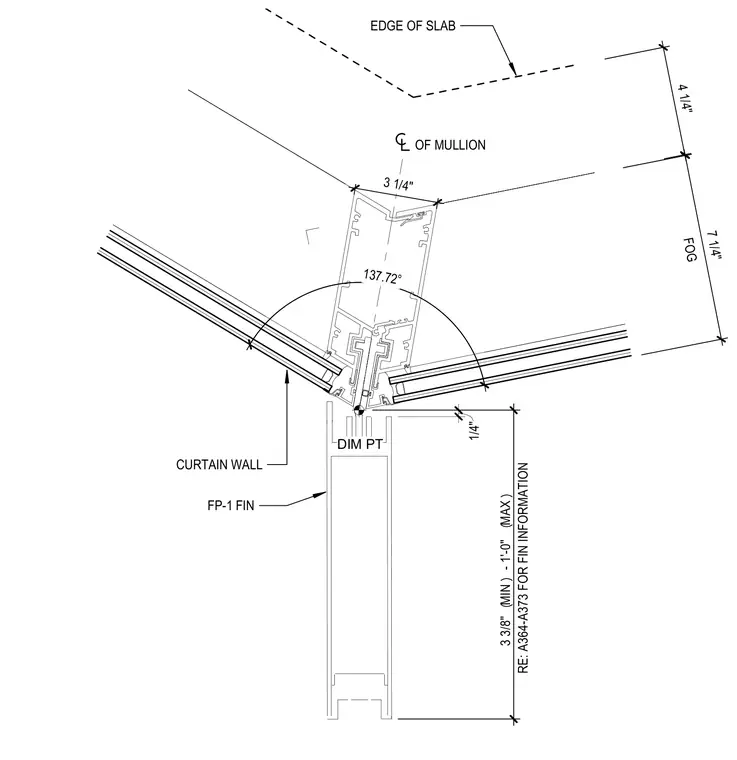

Corner condition of a curtain wall system featuring a central mullion, an exterior decorative fin designated FP-1, and adjacent glazing panels meeting at a 137.72 degree angle. The dimension point for the mullion is located relative to the edge of slab with measured clearances of four and one-quarter inches and seven and one-quarter inches. The exterior fin projects from the mullion face with a dimension ranging between three and three-eighths inches minimum and one foot zero inches maximum. Additional reference is made to sheets A364 through A373 for further fin information.
DIM PT OF MULLION EDGE OF SLAB CURTAIN WALL F O G 7 1 / 4 " 4 1 / 4 " 1 3 7 . 7 2 ° FP-1 FIN 3 1 / 4 " 1 / 4 " R E : A 3 6 4 - A 3 7 3 F O R F I N I N F O R M A T I O N 3 3 / 8 " ( M I N ) - 1 ' - 0 " ( M A X )
