Architectural · A-M9X87

Wood Door Jamb at Stucco and HSS Column

Materials

Steel Cold-formed Steel Timber / Wood Glass / Glazing Metal (misc.)Gypsum / Drywall EIFS / Plaster / Stucco

Elements

Columns Doors Insulation Roof / Floor Openings

Connections

HSS Connection

About this detail

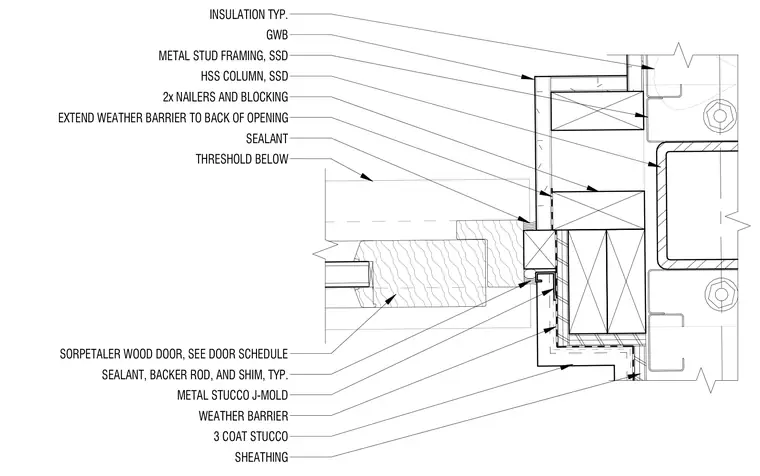

A wood door jamb assembly frames adjacent to a hollow structural section steel column and cold-formed metal stud framing. The exterior finish consists of a three-coat stucco system applied over sheathing and a weather barrier, finished with a metal stucco J-mold. A wood door is set within the rough opening, with wood nailers and blocking provided at the perimeter. Sealant with backer rod and shims are detailed at the joint between the frame and opening, and the weather barrier extends continuously to the back of the opening. Gypsum wall board lines the interior side of the metal stud framing.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
