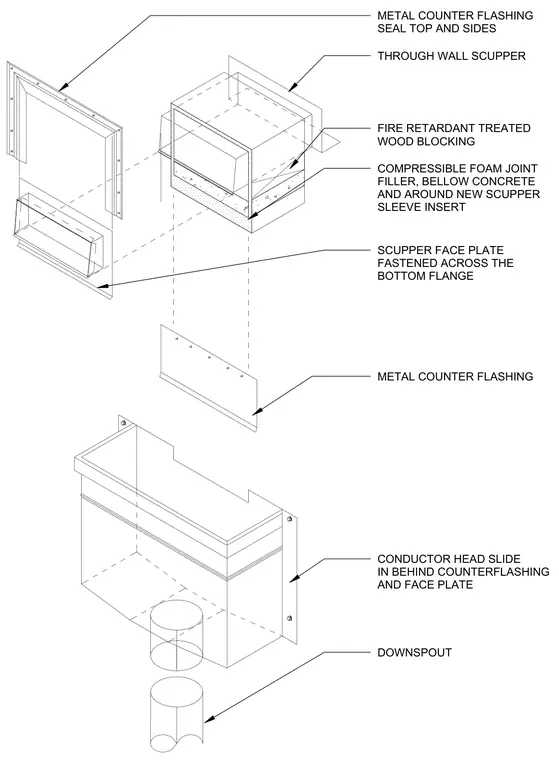

A through-wall scupper sleeve is bedded in concrete with compressible foam joint filler and supported by fire-retardant treated wood blocking. Metal counterflashing is sealed along the top and sides around the penetration, while the scupper face plate is fastened across the bottom flange. A conductor head slides in behind the counterflashing and face plate to connect with the downspout below.
DOWNSPOUT CONDUCTOR HEAD SLIDE IN BEHIND COUNTERFLASHING AND FACE PLATE METAL COUNTER FLASHING COMPRESSIBLE FOAM JOINT FILLER, BELLOW CONCRETE AND AROUND NEW SCUPPER SLEEVE INSERT THROUGH WALL SCUPPER METAL COUNTER FLASHING SEAL TOP AND SIDES SCUPPER FACE PLATE FASTENED ACROSS THE BOTTOM FLANGE FIRE RETARDANT TREATED WOOD BLOCKING
