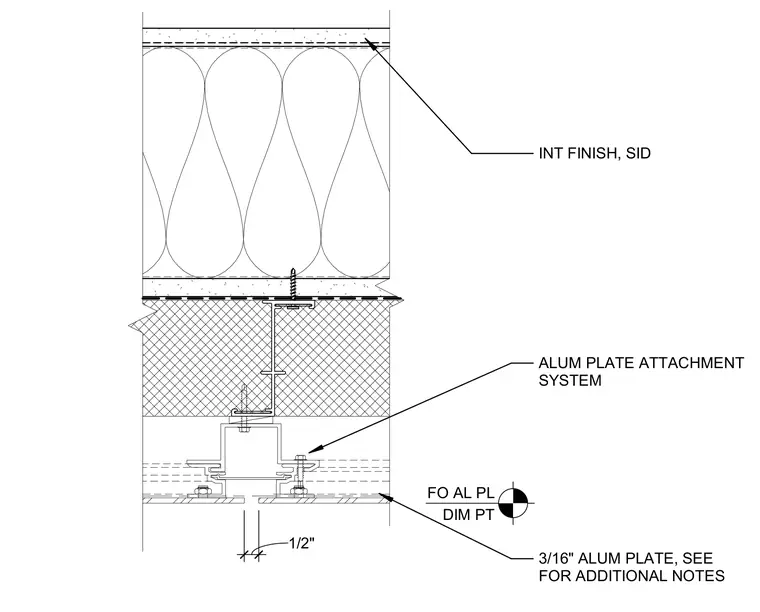

This vertical joint detail shows an interior finish backed by insulation, anchored to a structural support with a screw fastener. An aluminum plate attachment system secures three-sixteenths inch aluminum plates, leaving a one-half inch joint dimension point. Additional notes on the drawing reference the aluminum plate attachment system and surface finish requirements.
3/16" ALUM PLATE, SEE FOR ADDITIONAL NOTES ALUM PLATE ATTACHMENT SYSTEM 1/2" FO AL PL DIM PT INT FINISH, SID
