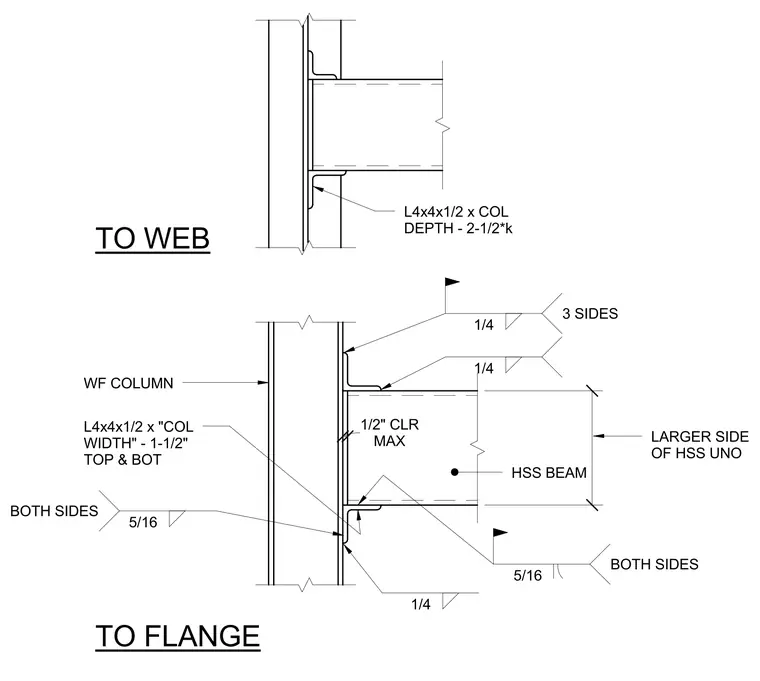

An HSS beam connects to a wide-flange column flange and web using L4x4x1/2 structural angles welded top and bottom. The connection to the column flange utilizes top and bottom angles sized to the column width minus 1-1/2 inches, welded with 5/16-inch fillet welds on both sides. The connection to the column web uses angles sized to the column depth minus 2-1/2 times k. The HSS beam maintains a maximum clearance of 1/2 inch from the column face, with 1/4-inch and 5/16-inch fillet welds applied to secure the angles to the beam walls.
L4x4x1/2 x "COL WIDTH" - 1-1/2" TOP & BOT WF COLUMN L4x4x1/2 x COL DEPTH - 2-1/2*k HSS BEAM TO FLANGE TO WEB LARGER SIDE OF HSS UNO . MAX 1/2" CLR 5/16 BOTH SIDES 5/16 BOTH SIDES 1/4 1/4 3 SIDES 1/4
