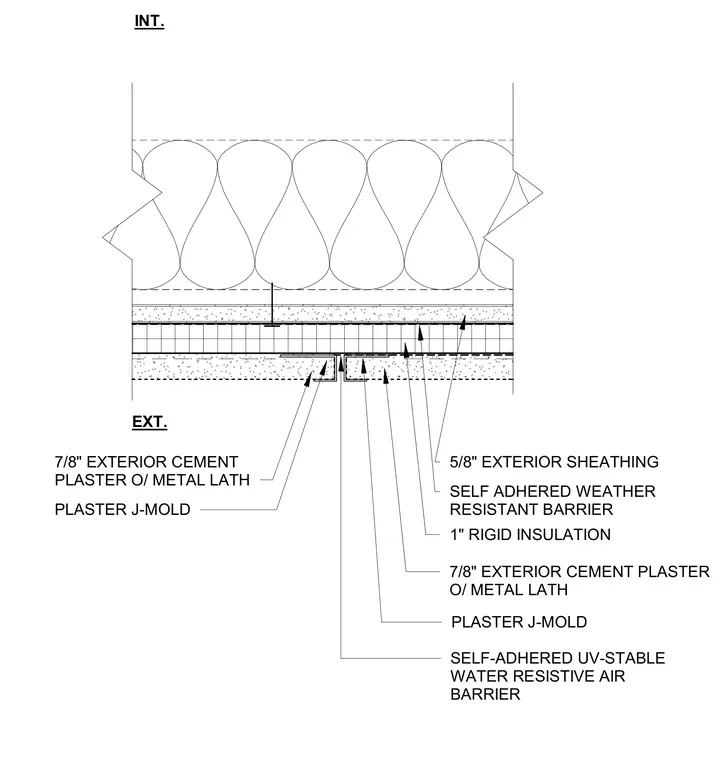

Dual plaster J-mold trims separate the finish coats at an exterior cement plaster transition joint. The exterior assembly consists of seven-eighths-inch exterior cement plaster over metal lath, backed by a self-adhered weather-resistant barrier and one-inch rigid insulation. The substrate is constructed from five-eighths-inch exterior sheathing with a self-adhered UV-stable water-resistive air barrier.
INT. EXT. 5/8" EXTERIOR SHEATHING 7/8" EXTERIOR CEMENT PLASTER O/ METAL LATH PLASTER J-MOLD 1" RIGID INSULATION SELF-ADHERED UV-STABLE WATER RESISTIVE AIR BARRIER SELF ADHERED WEATHER RESISTANT BARRIER 7/8" EXTERIOR CEMENT PLASTER O/ METAL LATH PLASTER J-MOLD
