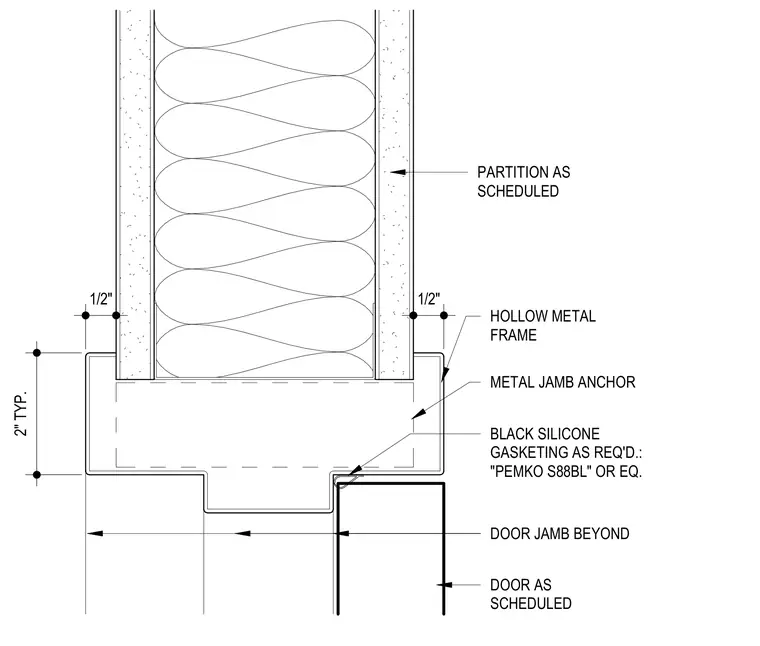

A hollow metal frame receives the door head at a partition assembly as scheduled. Metal jamb anchors secure the frame to the partition wall. Black silicone gasketing, specified as Pemko S88BL or equivalent, seals the door head interface. The adjacent door beyond meets the frame profile with standard clearances.
HOLLOW METAL FRAME DOOR AS SCHEDULED PARTITION AS SCHEDULED 2" TYP. 1/2" 1/2" DOOR JAMB BEYOND BLACK SILICONE GASKETING AS REQ'D.: "PEMKO S88BL" OR EQ. METAL JAMB ANCHOR
