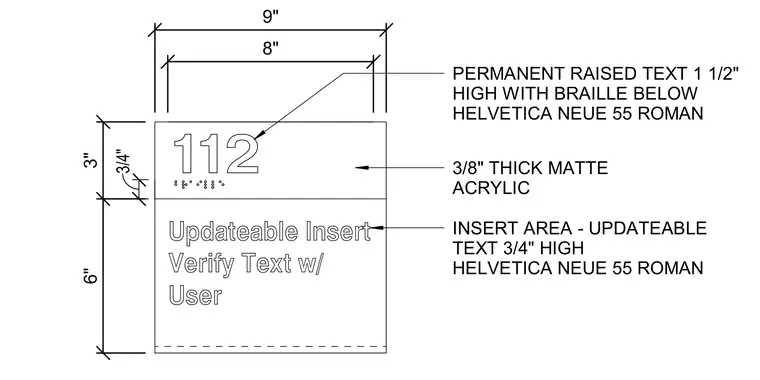

The sign assembly consists of a three-eighths-inch thick matte acrylic panel measuring nine inches wide by nine inches high. The upper section features permanent raised text one and one-half inches high in Helvetica Neue 55 Roman font with corresponding Braille dots below. Below the permanent text sits an updateable insert area designated for three-quarter-inch high text in Helvetica Neue 55 Roman font, subject to user verification.
Updateable Insert Verify Text w/ User 9" 6" 3" PERMANENT RAISED TEXT 1 1/2" HIGH WITH BRAILLE BELOW HELVETICA NEUE 55 ROMAN 3/8" THICK MATTE ACRYLIC INSERT AREA - UPDATEABLE TEXT 3/4" HIGH HELVETICA NEUE 55 ROMAN 3/4" 8"
