Architectural · A-M95MQ

ADA Accessible Sink Cabinet and Countertop Section

Materials

Elements

Walls Doors Floors / Slabs Millwork / Casework

About this detail

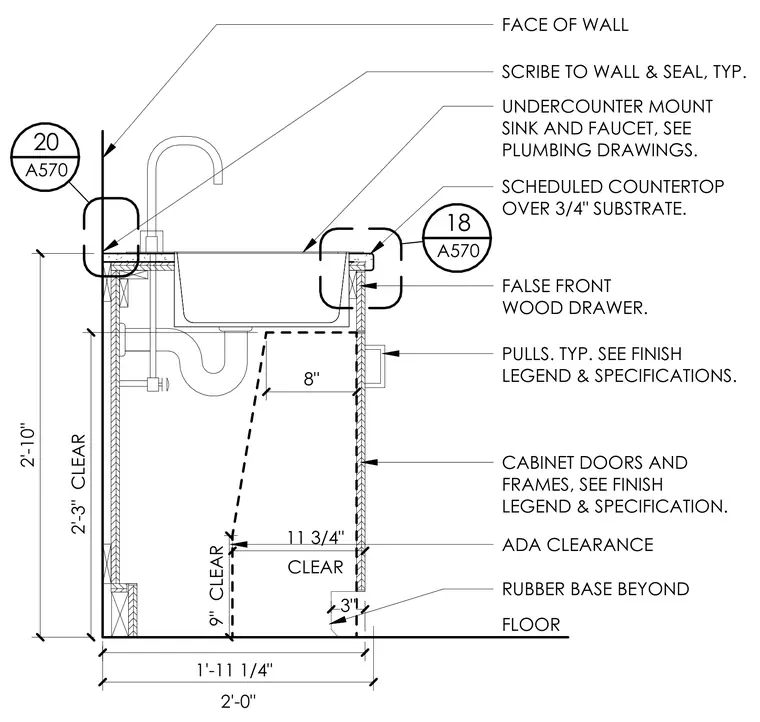

An accessibility-compliant casework section details a wood sink cabinet abutting a wall with a typical scribed seal. A scheduled countertop sits over a three-quarter-inch substrate and receives an undercounter mount sink and faucet. Below the counter, a false front wood drawer conceals the upper framing alongside standard cabinet doors and pulls. The interior knee space provides an eleven-and-three-quarter-inch clear depth at the floor, nine inches of vertical clearance, and a two-foot-three-inch clear height beneath the basin. A rubber base finishes the three-inch toe kick at the floor.
