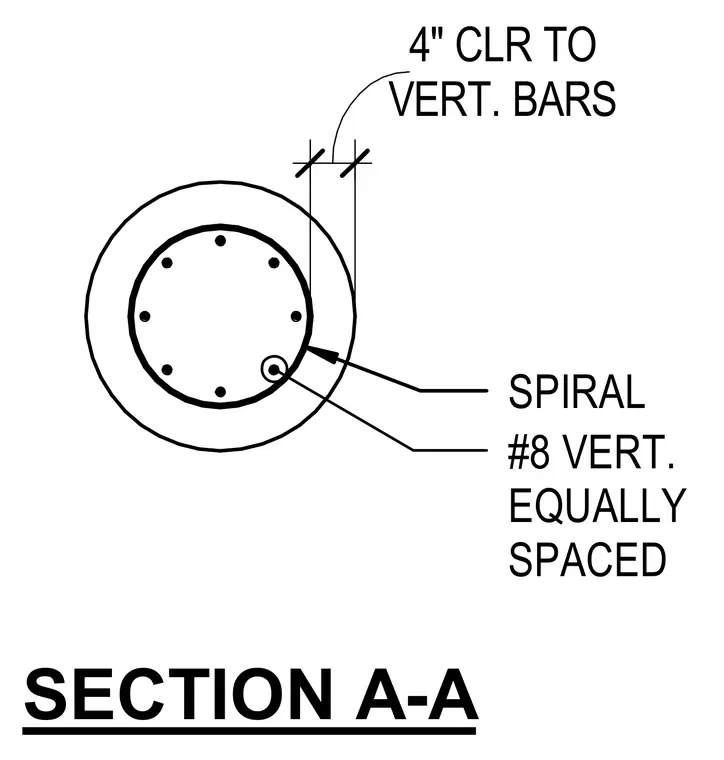

This structural section shows a circular concrete column with number eight vertical reinforcing bars distributed equally around the circumference. A continuous spiral reinforcement cage is enclosed within the outer concrete boundary. A dimension indicates four inches of clearance from the outer face to the vertical bars.
VERT. BARS 4" CLR TO SPIRAL #8 VERT. EQUALLY SPACED SECTION A-A
