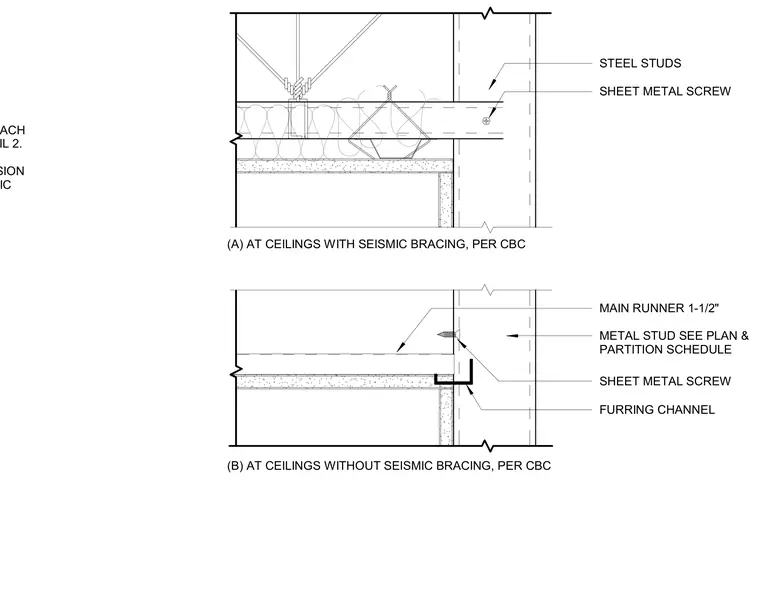

Suspended gypsum board ceiling edge conditions with and without seismic bracing requirements per the California Building Code. The seismically braced assembly features a vertical compression post at each set of bracing wires alongside a compression strut and main runner. The unbraced assembly utilizes a one-and-a-half-inch main runner, furring channels, and sheet metal screws connecting to wall-mounted metal studs sized per plan. Gypsum board is fastened to the framing members to complete the ceiling termination at the partition wall.
VERTICAL COMPRESSION POST AT EACH SET OF BRACING WIRES - SEE DETAIL 2. REPLACE HANGER WIRE. COMPRESSION STRUT NOT TO PENETRATE ACOUSTIC SHEET METAL SCREW FURRING CHANNEL (A) AT CEILINGS WITH SEISMIC BRACING, PER CBC METAL STUD SEE PLAN & PARTITION SCHEDULE SHEET METAL SCREW MAIN RUNNER 1-1/2" STEEL STUDS (B) AT CEILINGS WITHOUT SEISMIC BRACING, PER CBC
