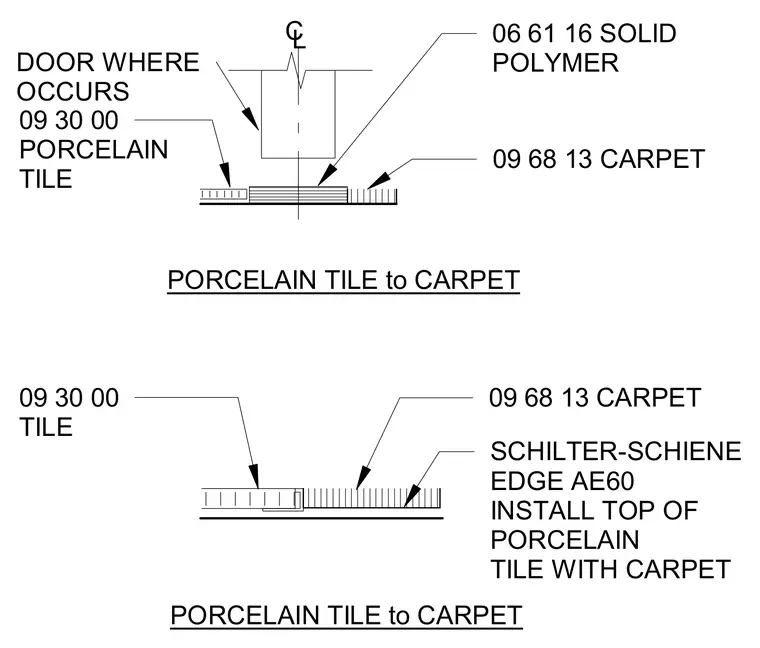

A transition threshold between porcelain tile and carpet flooring assemblies incorporates a solid polymer transition piece centered beneath a door location, flanked by porcelain tile on one side and carpet on the other. An alternate condition utilizes a Schluter-Schiene edge profile installed flush with the top of the porcelain tile adjacent to the carpet.
09 30 00 PORCELAIN TILE 09 68 13 CARPET 06 61 16 SOLID POLYMER PORCELAIN TILE to CARPET 09 68 13 CARPET SCHILTER-SCHIENE EDGE AE60 INSTALL TOP OF PORCELAIN TILE WITH CARPET PORCELAIN TILE to CARPET CL 09 30 00 TILE DOOR WHERE OCCURS
