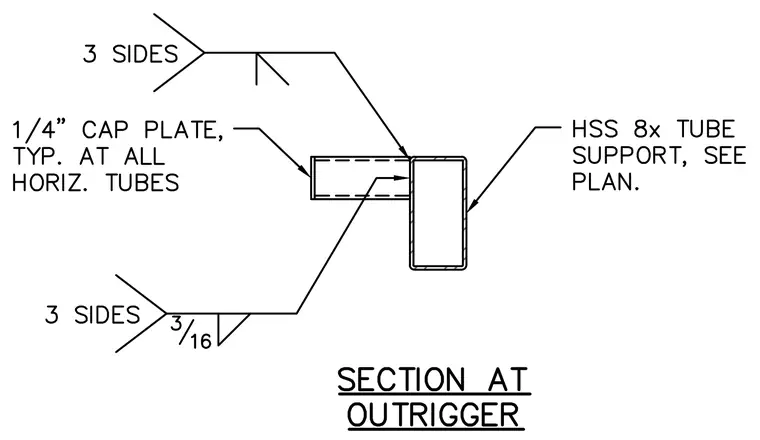

An HSS 8x tube support connects to a horizontal HSS tube outrigger with a one-quarter-inch cap plate typical at all horizontal tubes. The connection is welded on three sides with a three-sixteenth-inch fillet weld.
