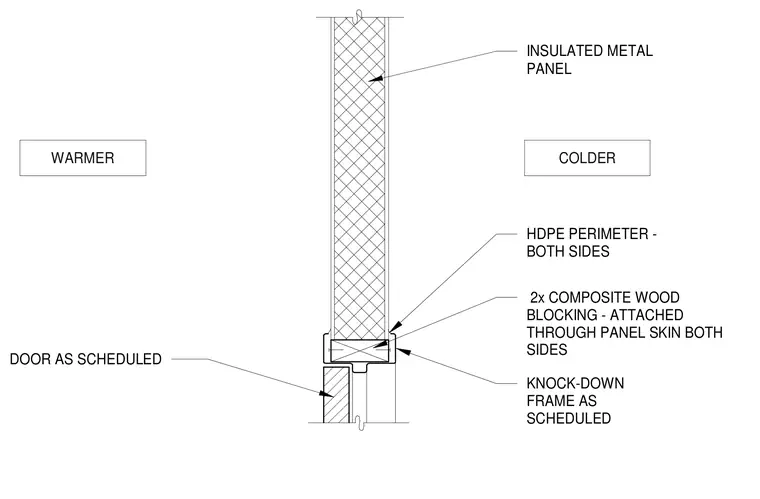

An interior knock-down frame as scheduled receives a door as scheduled below an insulated metal panel wall. A 2x composite wood blocking is attached through the panel skin on both sides and supported by high-density polyethylene perimeter blocking on both sides. The detail separates the warmer interior environment from the colder exterior side.
DOOR AS SCHEDULED INSULATED METAL PANEL 2x COMPOSITE WOOD BLOCKING - ATTACHED THROUGH PANEL SKIN BOTH SIDES HDPE PERIMETER - BOTH SIDES KNOCK-DOWN FRAME AS SCHEDULED WARMER COLDER
