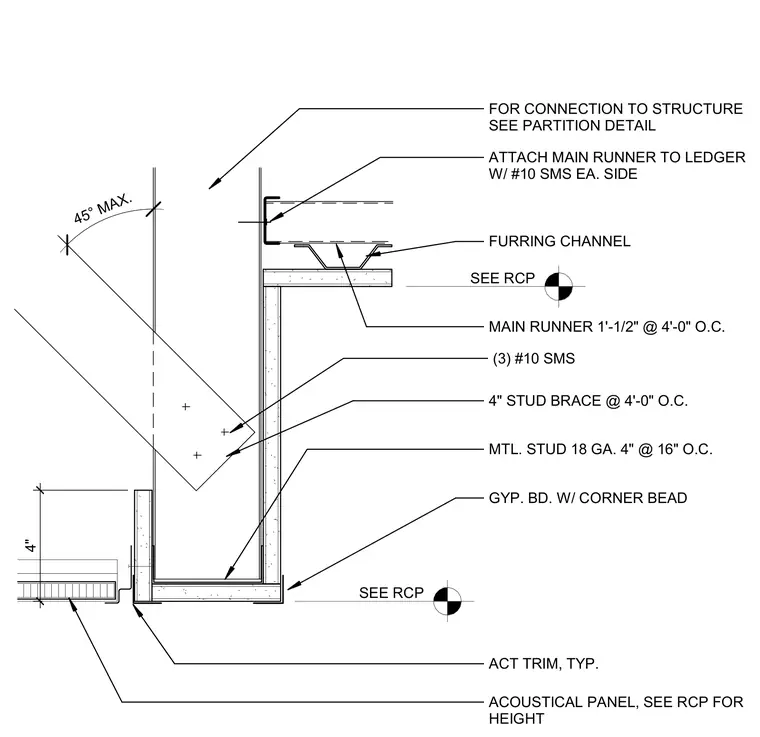

An acoustical ceiling tile abuts a dropped gypsum board ceiling assembly framed with eighteen-gauge four-inch metal studs spaced sixteen inches on center. The main ceiling runner attaches to the ledger with number ten sheet metal screws on each side. A four-inch stud brace at forty-five degrees maximum is fastened with three number ten sheet metal screws at four feet on center. Gypsum board is finished with a corner bead at the transition, and acoustical ceiling trim finishes the edge of the acoustical panels.
FOR CONNECTION TO STRUCTURE SEE PARTITION DETAIL 4" ATTACH MAIN RUNNER TO LEDGER W/ #10 SMS EA. SIDE FURRING CHANNEL MAIN RUNNER 1'-1/2" @ 4'-0" O.C. (3) #10 SMS 4" STUD BRACE @ 4'-0" O.C. MTL. STUD 18 GA. 4" @ 16" O.C. GYP. BD. W/ CORNER BEAD ACT TRIM, TYP. ACOUSTICAL PANEL, SEE RCP FOR HEIGHT SEE RCP SEE RCP 45° MAX.
