Base Cabinet W/ Shelf & Drawer (A, B)

Materials

Elements

Doors Facades / Cladding Millwork / Casework

About this detail

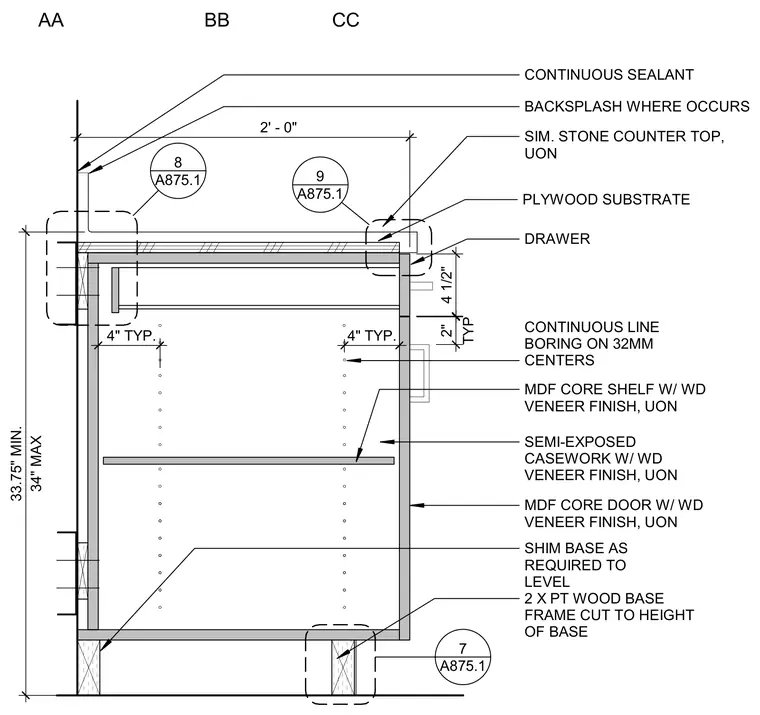

The base cabinet assembly rests on a two-by pressure-treated wood base frame cut to the height of the base and leveled with shims as required. Semi-exposed casework features a wood veneer finish with continuous line boring on thirty-two millimeter centers for adjustable shelving. The interior includes a medium-density fiberboard core shelf and a drawer, enclosed by a medium-density fiberboard core door with a wood veneer finish. A plywood substrate supports a simulated stone countertop finished with a four-and-a-half-inch backsplash where occurring, sealed with a continuous sealant bead at the wall interface.
