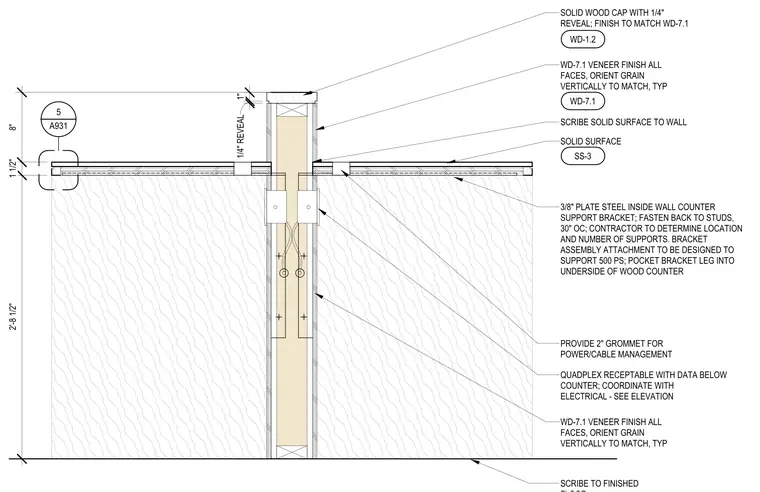

This assembly features a solid surface countertop finished with a solid wood cap and a one-quarter inch reveal. The counter is supported by three-eighths inch plate steel brackets fastened back to the wall studs at thirty inches on center, designed to support five hundred pounds. The bracket leg is pocketed into the underside of the wood counter. A two-inch grommet is provided for power and cable management, with a quadplex receptacle located below the counter surface. All veneer finishes are oriented vertically to match typical specifications, and the base is scribed to the finished floor.
