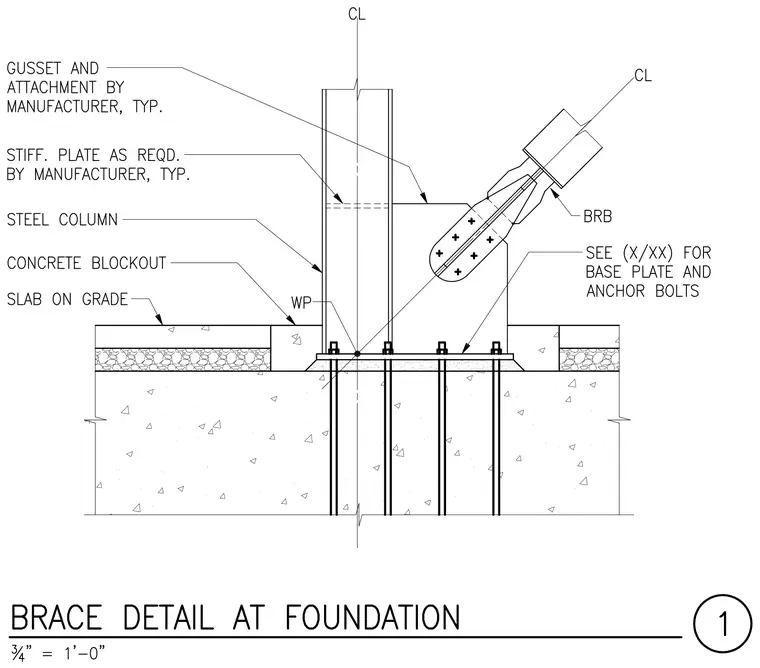

A buckling-restrained brace connects to a gusset plate attached to a structural steel column base. The steel column is anchored to a concrete slab on grade with a concrete blockout surrounding the base plate. The gusset plate and attachment are provided by the manufacturer, with stiffener plates included as required. Anchor bolts secure the base plate into the concrete foundation.
