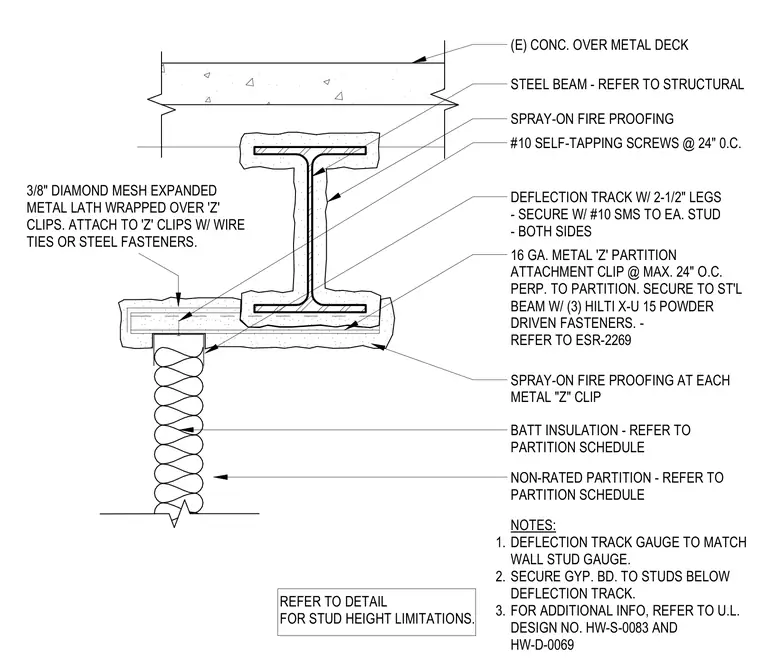

A non-rated partition head frames into a structural steel beam supporting an existing concrete-filled metal deck. A deflection track featuring two-and-a-half-inch legs is secured with number ten self-tapping sheet metal screws to each stud on both sides. A sixteen-gauge metal 'Z' partition attachment clip is spaced at a maximum of twenty-four inches on center perpendicular to the partition and secured to the steel beam using three Hilti X-U fifteen powder-driven fasteners. Spray-on fireproofing is applied at each metal 'Z' clip. Three-eighths-inch diamond mesh expanded metal lath is wrapped over the 'Z' clips and attached using wire ties or steel fasteners. Batt insulation fills the non-rated partition cavity.
REFER TO DETAIL FOR STUD HEIGHT LIMITATIONS. (E) CONC. OVER METAL DECK STEEL BEAM - REFER TO STRUCTURAL SPRAY-ON FIRE PROOFING #10 SELF-TAPPING SCREWS @ 24" 0.C. DEFLECTION TRACK W/ 2-1/2" LEGS - SECURE W/ #10 SMS TO EA. STUD - BOTH SIDES 16 GA. METAL 'Z' PARTITION ATTACHMENT CLIP @ MAX. 24" O.C. PERP. TO PARTITION. SECURE TO ST'L BEAM W/ (3) HILTI X-U 15 POWDER DRIVEN FASTENERS. - REFER TO ESR-2269 SPRAY-ON FIRE PROOFING AT EACH METAL "Z" CLIP BATT INSULATION - REFER TO PARTITION SCHEDULE NON-RATED PARTITION - REFER TO PARTITION SCHEDULE NOTES: DEFLECTION TRACK GAUGE TO MATCH WALL STUD GAUGE. SECURE GYP. BD. TO STUDS BELOW DEFLECTION TRACK. FOR ADDITIONAL INFO, REFER TO U.L. DESIGN NO. HW-S-0083 AND HW-D-0069 3/8" DIAMOND MESH EXPANDED METAL LATH WRAPPED OVER 'Z' CLIPS. ATTACH TO 'Z' CLIPS W/ WIRE TIES OR STEEL FASTENERS. 1. 2. 3.
