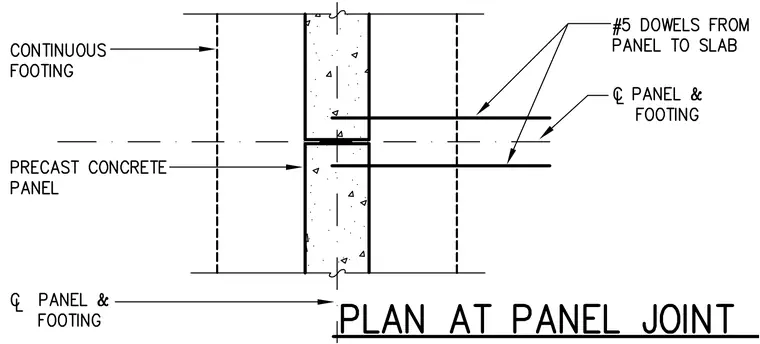

Precast concrete panels align above a continuous footing with a vertical joint between panels. Number 5 dowels span from the precast concrete panel into the slab. Centerline markers designate the alignment of the panel and footing.
