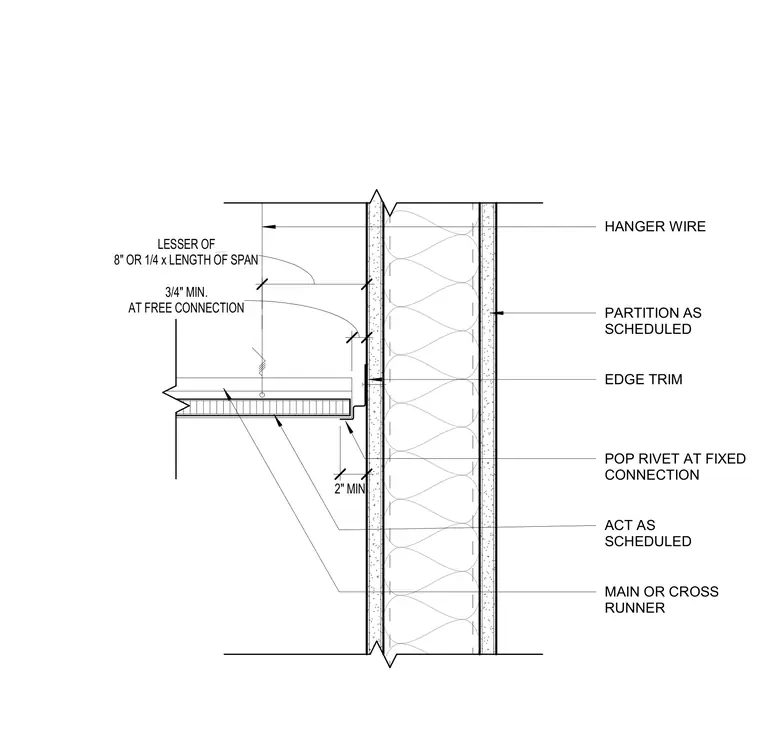

An acoustic ceiling tile system terminates at a partition wall with an edge trim secured by a pop rivet at the fixed connection. The suspended ceiling main or cross runner is supported by hanger wires spaced at the lesser of eight inches or one-quarter of the length of the span. A minimum clearance is maintained at the free connection while the fixed edge trim establishes the wall junction. The partition wall assembly features framing and board as scheduled.
HANGER WIRE PARTITION AS SCHEDULED EDGE TRIM POP RIVET AT FIXED CONNECTION ACT AS SCHEDULED MAIN OR CROSS RUNNER 8" OR 1/4 x LENGTH OF SPAN LESSER OF 3/4" MIN. AT FREE CONNECTION 2" MIN
