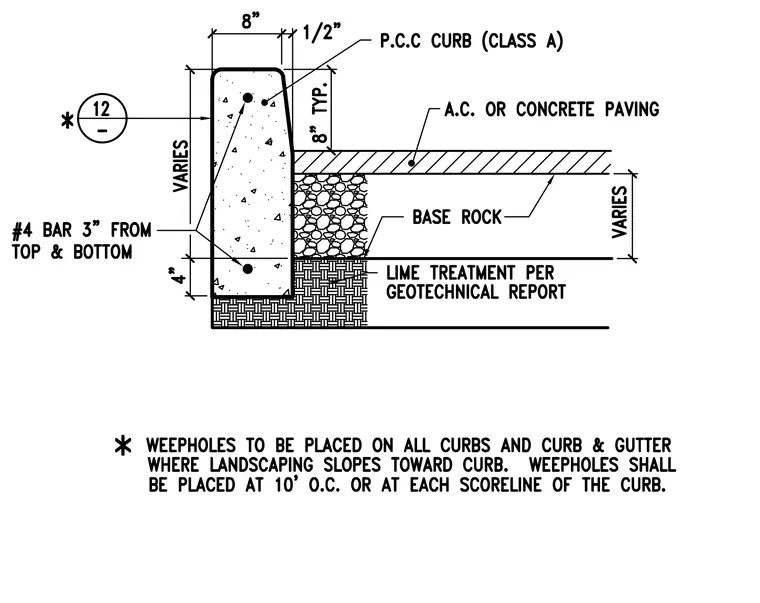

An 8-inch Portland cement concrete curb of Class A mix sets upon a lime-treated subgrade per the geotechnical report. The curb includes number 4 reinforcing bars placed 3 inches from the top and bottom. Base rock extends beneath the adjacent asphalt concrete or concrete paving, with variable depths specified. A note indicates that weepholes are required on all curbs where landscaping slopes toward the curb, spaced at 10 feet on center or at each scoreline.
