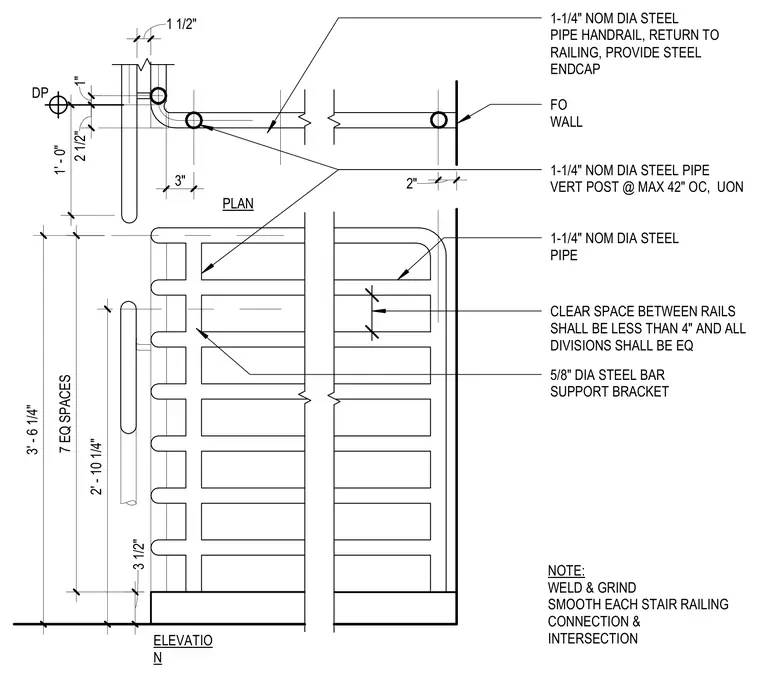

This stair railing assembly features a 1-1/4" nominal diameter steel pipe handrail returning to the wall with a steel endcap. Vertical posts of the same diameter are spaced at a maximum of 42" on center unless otherwise noted, supporting horizontal intermediate rails. Clear spacing between rails is maintained at less than 4" with equal divisions, framed by 5/8" diameter steel bar support brackets. All stair railing connections and intersections are welded and ground smooth per project notes.
DP PLAN ELEVATIO N 1-1/4" NOM DIA STEEL PIPE HANDRAIL, RETURN TO RAILING, PROVIDE STEEL ENDCAP 2" 3" 2 1/2" 1" 1 1/2" 3 1/2" 2' - 10 1/4" 7 EQ SPACES 3' - 6 1/4" 1-1/4" NOM DIA STEEL PIPE VERT POST @ MAX 42" OC, UON FO WALL 1-1/4" NOM DIA STEEL PIPE CLEAR SPACE BETWEEN RAILS SHALL BE LESS THAN 4" AND ALL DIVISIONS SHALL BE EQ 5/8" DIA STEEL BAR SUPPORT BRACKET NOTE: WELD & GRIND SMOOTH EACH STAIR RAILING CONNECTION & INTERSECTION 1' - 0"
