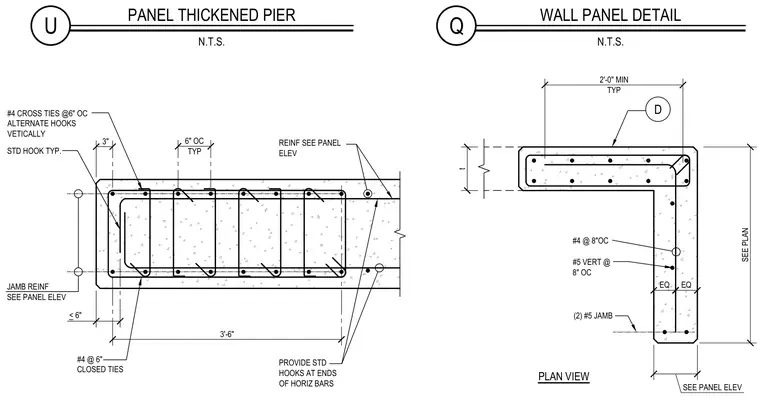

The concrete wall panel thickened pier and corner details show vertical and horizontal reinforcing placement. The pier features number 4 closed ties spaced at 6 inches on center with alternating hooks vertically, along with standard hooks at the ends of horizontal bars. The adjacent wall plan shows number 5 vertical reinforcing at 8 inches on center and number 4 bars at 8 inches on center, with two number 5 jamb bars. Standard hooks are provided at the ends of horizontal bars throughout.
Q WALL PANEL DETAIL N.T.S. U PANEL THICKENED PIER N.T.S. t SEE PANEL ELEV 2'-0" MIN TYP PLAN VIEW (2) #5 JAMB SEE PLAN D EQ EQ #4 @ 8"OC #5 VERT @ 8" OC 3'-6" < 6" 3" REINF SEE PANEL ELEV #4 @ 6" CLOSED TIES JAMB REINF SEE PANEL ELEV STD HOOK TYP. #4 CROSS TIES @6" OC ALTERNATE HOOKS VETICALLY PROVIDE STD HOOKS AT ENDS OF HORIZ BARS 6" OC TYP
