A hollow metal frame is centered on a concrete wall and grouted solid. The door is sized per the schedule. The concrete wall size and reinforcing are specified in the structural drawings.

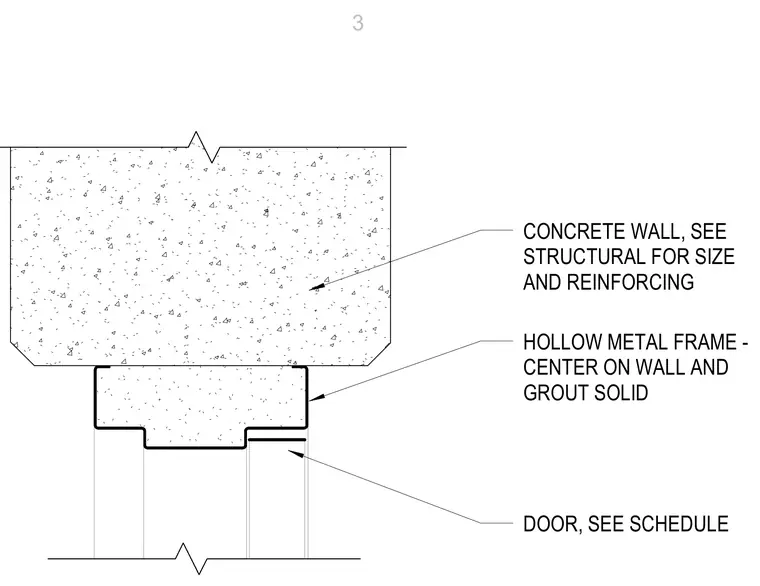

HOLLOW METAL FRAME - CENTER ON WALL AND GROUT SOLID DOOR, SEE SCHEDULE CONCRETE WALL, SEE STRUCTURAL FOR SIZE AND REINFORCING 3
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
