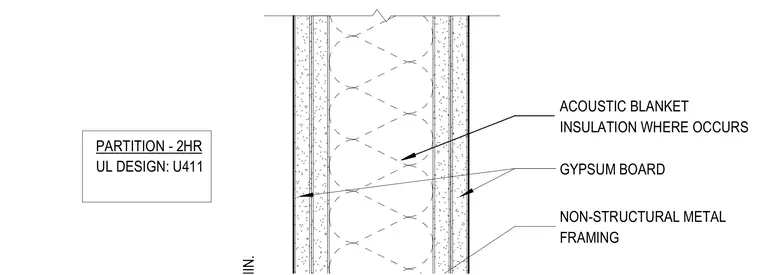

This assembly consists of non-structural metal framing faced on both sides with multiple layers of gypsum board to achieve a two-hour fire rating conforming to UL Design U411. An acoustic blanket insulation is installed within the stud cavity where specified for sound attenuation.
I N . PARTITION - 2HR UL DESIGN: U411 GYPSUM BOARD NON-STRUCTURAL METAL FRAMING GYPSUM BOARD ACOUSTIC BLANKET INSULATION WHERE OCCURS
