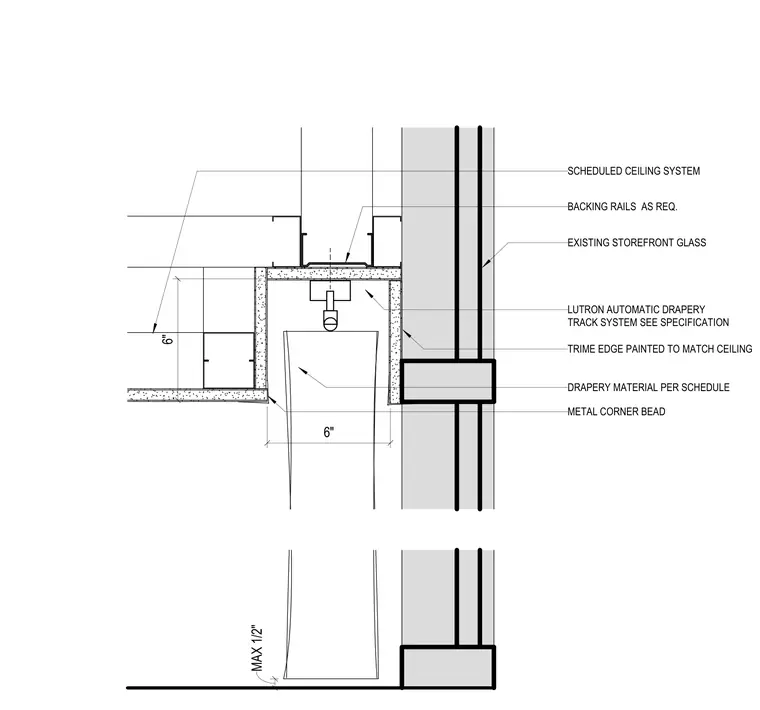

An automatic drapery track system mounts to required backing rails within a recessed ceiling pocket adjacent to existing storefront glass. The six-inch wide pocket is framed with gypsum board and finished with metal corner beads, featuring a trim edge painted to match the ceiling. Drapery material hangs from the motorized track to a maximum clearance of one-half inch above the floor finish.
BACKING RAILS AS REQ. LUTRON AUTOMATIC DRAPERY TRACK SYSTEM SEE SPECIFICATION DRAPERY MATERIAL PER SCHEDULE EXISTING STOREFRONT GLASS SCHEDULED CEILING SYSTEM TRIME EDGE PAINTED TO MATCH CEILING MAX 1/2" 6" 6" METAL CORNER BEAD
