A six-inch square mullion center-glazed aluminum-framed storefront system with a three-part PVDF finish connects to a structural concrete wall and rammed earth panels. Shims and backer rod with sealant fill the joint spaces. An eighteen-gauge sheet metal flashing installs over a metal stud wall backed by five-eighths-inch gypsum sheathing. Rammed earth panels interface with the assembly per interior drawings.

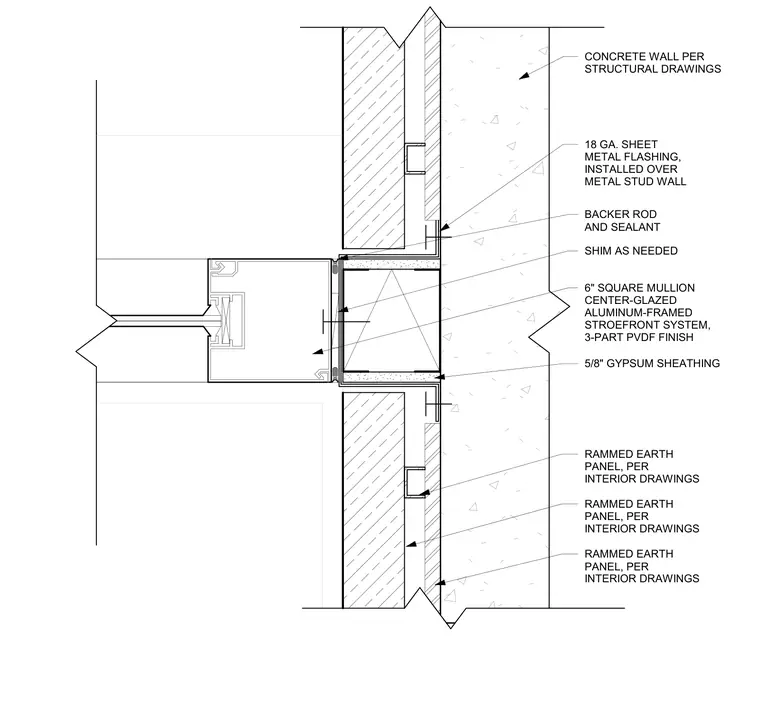

RAMMED EARTH PANEL, PER INTERIOR DRAWINGS CONCRETE WALL PER STRUCTURAL DRAWINGS RAMMED EARTH PANEL, PER INTERIOR DRAWINGS RAMMED EARTH PANEL, PER INTERIOR DRAWINGS 18 GA. SHEET METAL FLASHING, INSTALLED OVER METAL STUD WALL 5/8" GYPSUM SHEATHING BACKER ROD AND SEALANT 6" SQUARE MULLION CENTER-GLAZED ALUMINUM-FRAMED STROEFRONT SYSTEM, 3-PART PVDF FINISH SHIM AS NEEDED
