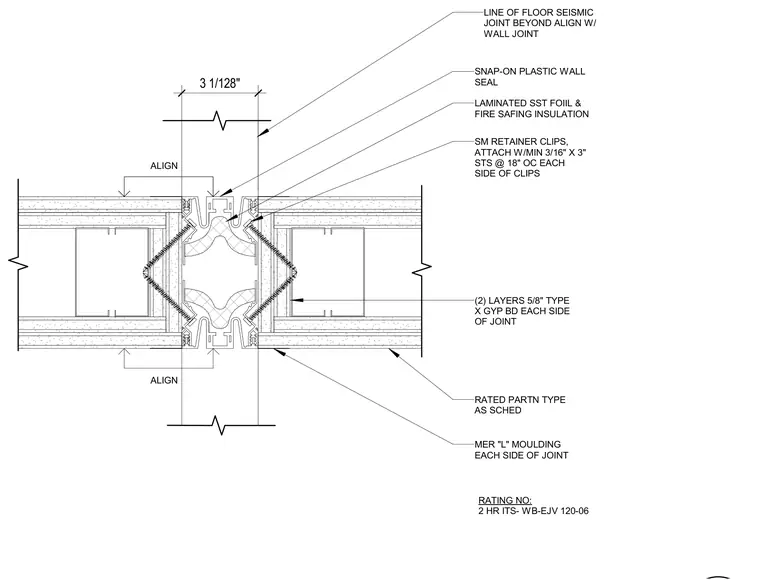

This seismic expansion joint detail occurs within a two-hour rated gypsum board partition assembly. Two layers of five-eighths inch Type X gypsum board are applied to each side of the partition framing, finished with "L" mouldings at the joint edges. The joint incorporates a snap-on plastic wall seal and laminated stainless steel foil backed by fire safing insulation. Sheet metal retainer clips are attached with minimum three-sixteenths by three-inch screws spaced at eighteen inches on center on each side of the clips.
ALIGN LINE OF FLOOR SEISMIC JOINT BEYOND ALIGN W/ WALL JOINT SNAP-ON PLASTIC WALL SEAL LAMINATED SST FOIIL & FIRE SAFING INSULATION SM RETAINER CLIPS, ATTACH W/MIN 3/16" X 3" STS @ 18" OC EACH SIDE OF CLIPS RATED PARTN TYPE AS SCHED MER "L" MOULDING EACH SIDE OF JOINT (2) LAYERS 5/8" TYPE X GYP BD EACH SIDE OF JOINT ALIGN 3 1/128" RATING NO: 2 HR ITS- WB-EJV 120-06
