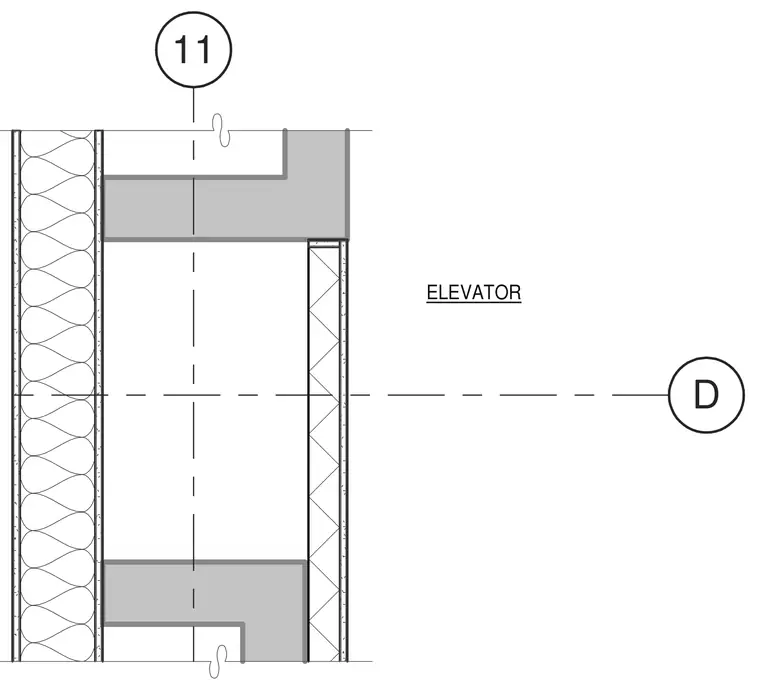

A fire-rated wall assembly adjacent to an elevator shaft features layered gypsum board panels over metal stud framing with internal batt insulation. The construction includes a double-sided wall configuration designed to meet specific shaft enclosure ratings.
