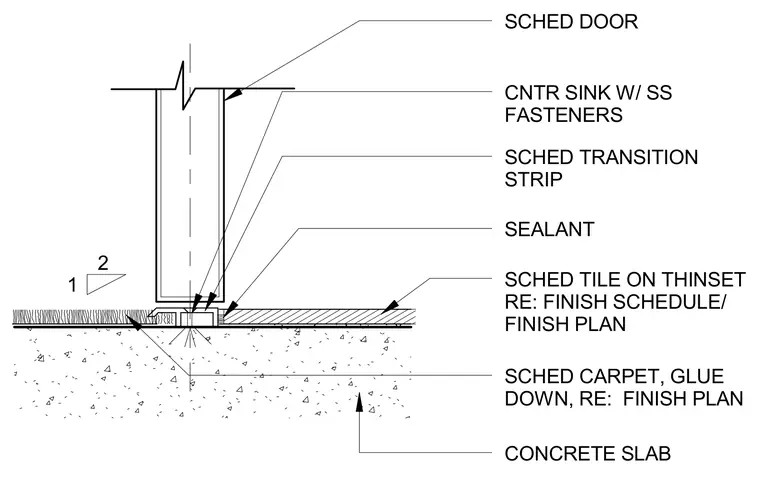

Scheduled carpet set with glue down installation meets scheduled tile laid on thinset mortar over a concrete slab. A scheduled transition strip bridges the floor finish change directly beneath a scheduled door frame. Countersunk stainless steel fasteners anchor the assembly to the concrete substrate with sealant applied at the perimeter joints.
SCHED TILE ON THINSET RE: FINISH SCHEDULE/ FINISH PLAN SCHED TRANSITION STRIP SCHED CARPET, GLUE DOWN, RE: FINISH PLAN SEALANT SCHED DOOR CONCRETE SLAB CNTR SINK W/ SS FASTENERS 2 1
