Architectural · A-M5TEW

Playback Speaker to Pipe Grid Connection

Elements

Connections

About this detail

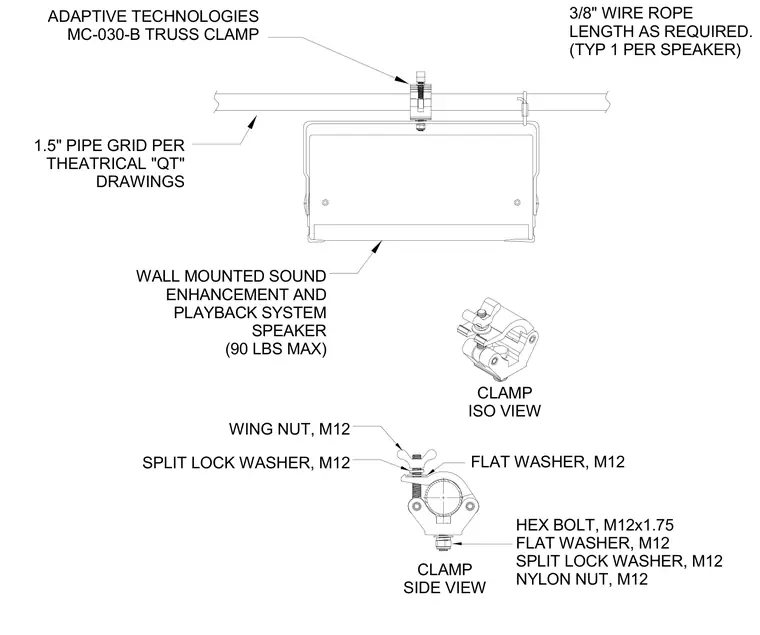

A wall-mounted sound enhancement and playback system speaker weighing ninety pounds maximum hangs from a one-and-a-half-inch pipe grid per theatrical drawings. An Adaptive Technologies MC-030-B truss clamp secures the assembly to the pipe grid using M12 hex bolts, flat washers, split lock washers, and nylon nuts, along with an M12 wing nut. Three-eighths-inch wire rope of length as required provides secondary support with one wire rope per speaker typical.
