Architectural · A-M5KPS

T208 Custom Medallion

Scale: SCALE: 1 1/2" = 1'-0"
Units: imperial
Sheet: A5
Discipline: Architectural

Elements

Millwork / Casework

Text on the drawing

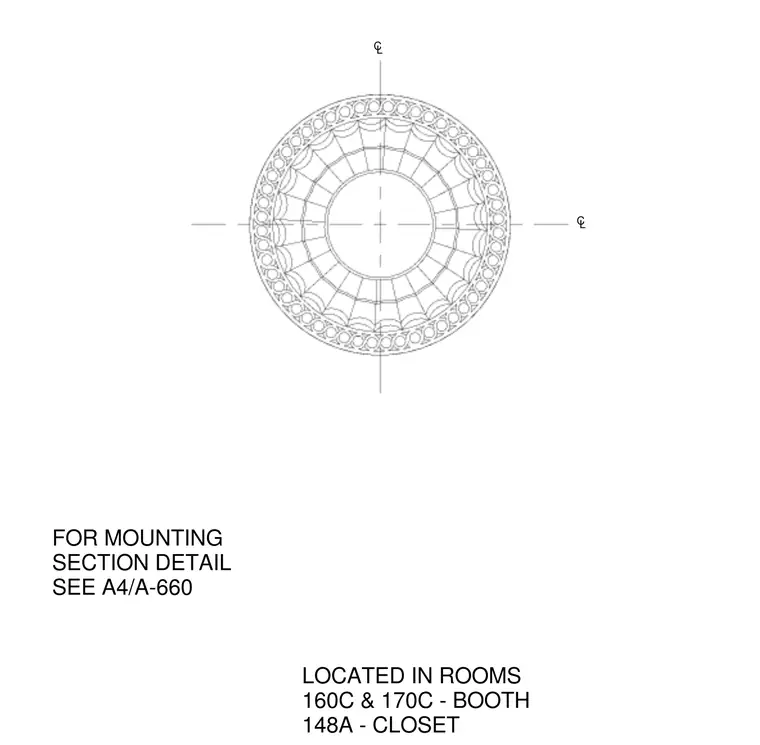

CL CL LOCATED IN ROOMS 160C & 170C - BOOTH 148A - CLOSET FOR MOUNTING SECTION DETAIL SEE A4/A-660
