An aluminum frame assembly anchors into a scheduled partition with continuous acoustical sealant applied to all sides. The sliding aluminum door receives a three-eighths-inch laminated glazing panel and a scheduled back-to-back door pull. A side lite is coordinated per the exterior elevation.

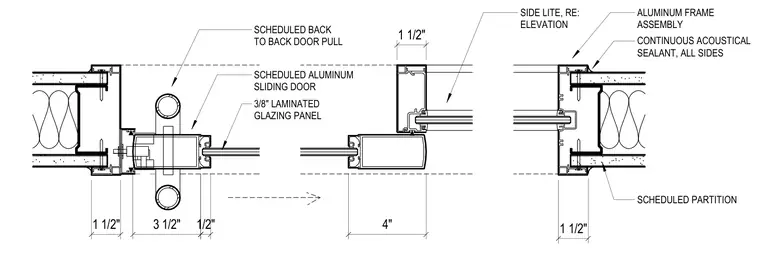

CONTINUOUS ACOUSTICAL SEALANT, ALL SIDES SCHEDULED BACK TO BACK DOOR PULL SCHEDULED ALUMINUM SLIDING DOOR ALUMINUM FRAME ASSEMBLY SIDE LITE, RE: ELEVATION 3/8" LAMINATED GLAZING PANEL 1 1/2" 3 1/2" 1/2" 4" 1 1/2" 1 1/2" SCHEDULED PARTITION
