Architectural · A-M5G3G

Full Height Millwork Cabinet Section

Materials

Elements

Doors Ceilings Floors / Slabs Millwork / Casework Connections / Plates

About this detail

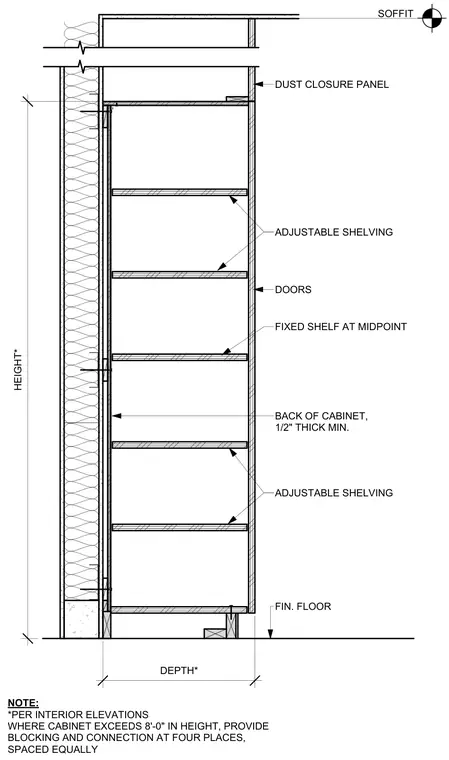

This full-height cabinet section shows millwork casework extending from the finished floor to the ceiling soffit. The assembly includes a minimum one-half-inch thick cabinet back, multiple levels of adjustable shelving, and a fixed shelf at the midpoint. A dust closure panel is installed at the top, meeting the ceiling soffit. For cabinets exceeding eight feet in height, interior elevations require blocking and connections at four equally spaced locations.
