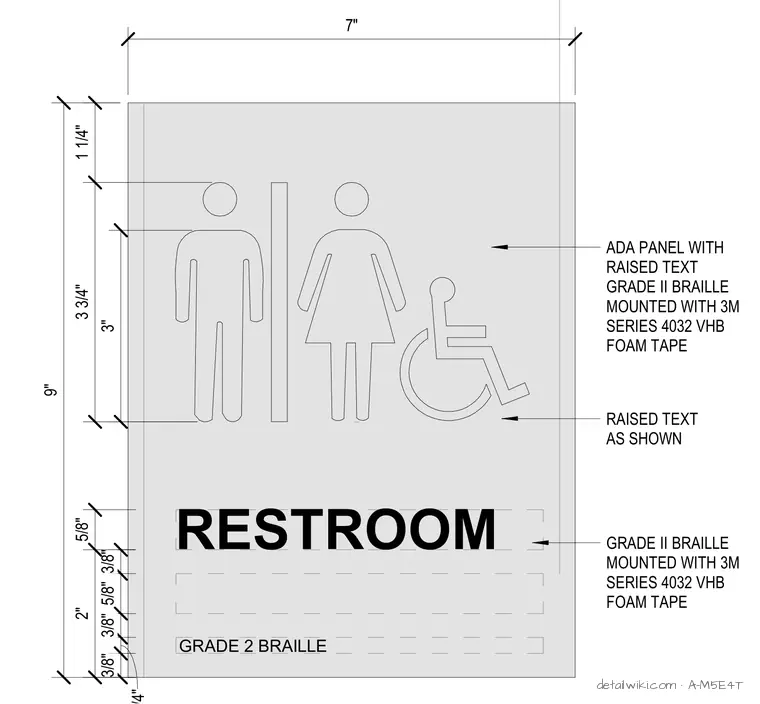

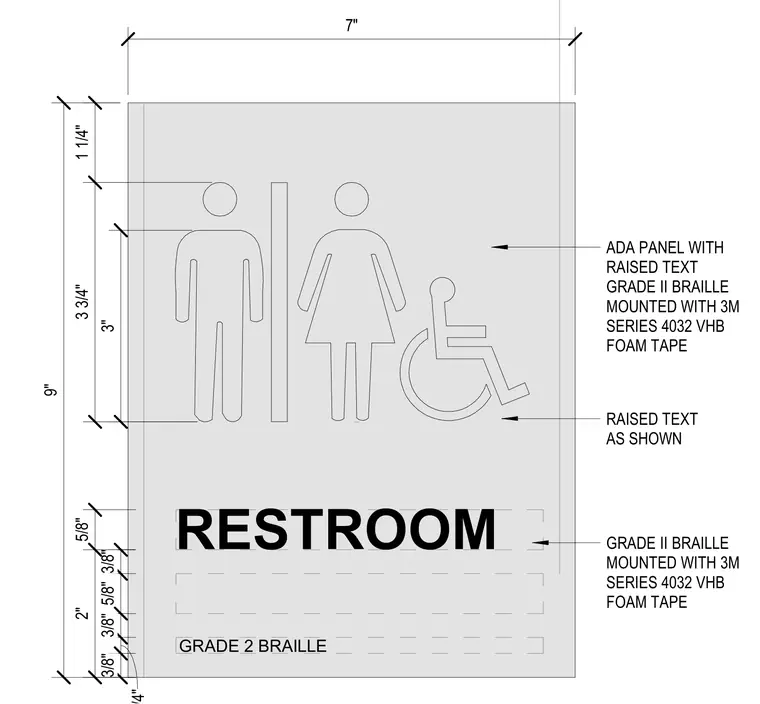

The ADA-compliant restroom sign measures 7 inches wide by 9 inches high and features raised text and Grade II Braille. The panel is secured to the wall surface using 3M Series 4032 VHB foam tape. Vertical dimensions are provided for the placement of the pictograms, text, and Braille elements to ensure compliance with accessibility standards.
Text on the drawing
3" 1 1/4" 3 3/4" 9" 7" ADA PANEL WITH RAISED TEXT GRADE II BRAILLE MOUNTED WITH 3M SERIES 4032 VHB FOAM TAPE RAISED TEXT AS SHOWN
