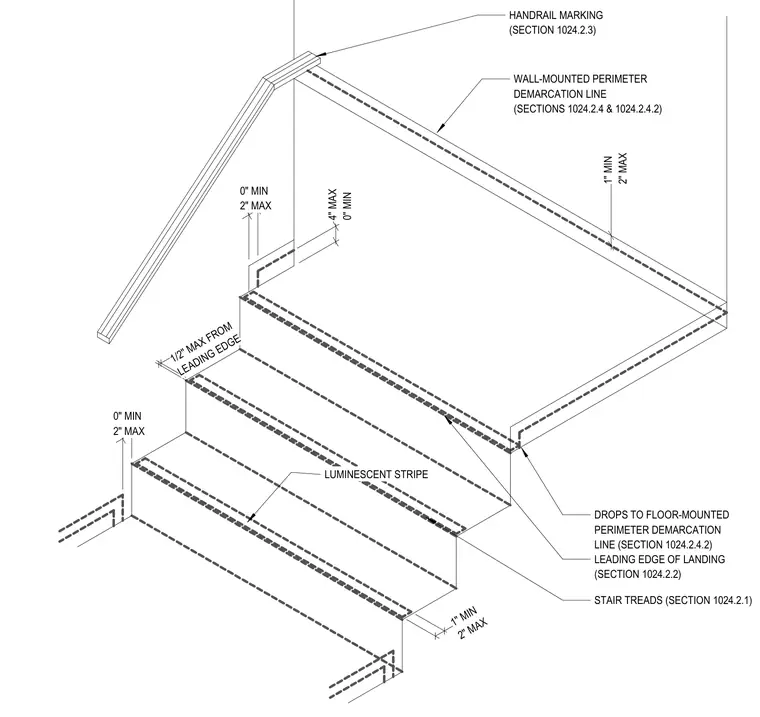

Luminous egress markings are installed on stair treads, handrails, and surrounding walls to comply with building code requirements. Stair treads feature a luminescent stripe placed a half-inch maximum from the leading edge, with a one to two-inch width. Perimeter demarcation lines run along the walls and drop down to floor-mounted positions maintaining zero to four-inch clearances from the floor surface. Handrail markings are positioned continuously along the top surface of the handrail following code sections 1024.2.3 and 1024.2.4.
0" MIN 2" MAX HANDRAIL MARKING (SECTION 1024.2.3) WALL-MOUNTED PERIMETER DEMARCATION LINE (SECTIONS 1024.2.4 & 1024.2.4.2) 0" MIN 2" MAX 1" MIN 2" MAX DROPS TO FLOOR-MOUNTED PERIMETER DEMARCATION LINE (SECTION 1024.2.4.2) LEADING EDGE OF LANDING (SECTION 1024.2.2) STAIR TREADS (SECTION 1024.2.1) 4" MAX 0" MIN 1/2" MAX FROM LEADING EDGE LUMINESCENT STRIPE 1" MIN 2" MAX
