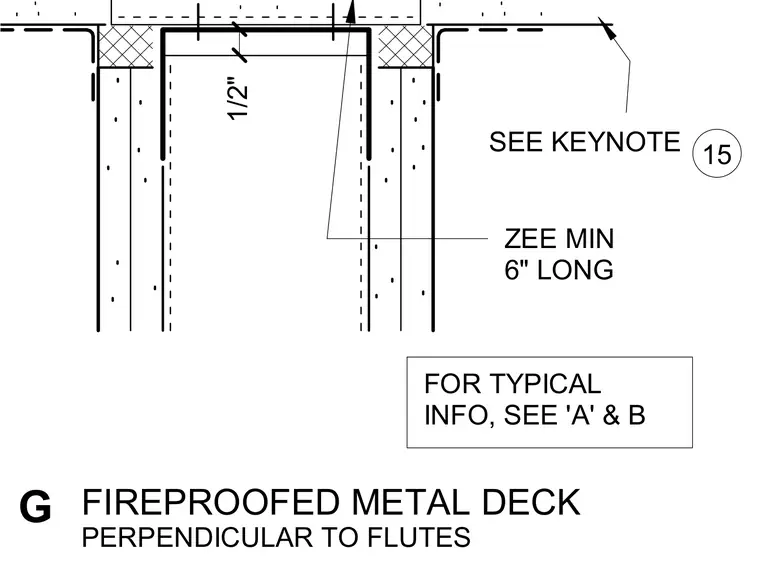

A partition wall head terminates below a fireproofed metal deck oriented perpendicular to the deck flutes. A one-half-inch gap is provided at the top of the wall framing for movement and firestopping. A minimum six-inch long Zee clip secures the top track assembly. Keynote references and general notes coordinate standard installation requirements.
ZEE MIN 6" LONG 1/2" FOR TYPICAL INFO, SEE 'A' & B FIREPROOFED METAL DECK PERPENDICULAR TO FLUTES G SEE KEYNOTE 15
