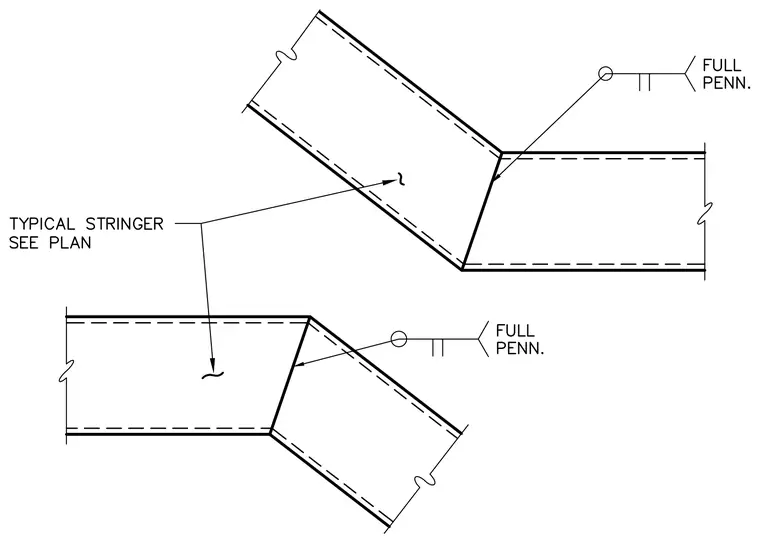

The stair stringers are sized per plan and connected using a full penetration weld at the joint intersection. Leader lines designate the typical stringer layout with referenced details shown on the plan. The joint requires a complete joint penetration weld indicated by standard welding symbols.
