Architectural · A-M4P3C

Curtain Wall Sill at Light Box and Perforated Metal Panel

Materials

Elements

Walls Windows Curtain Walls Facades / Cladding Waterproofing / Flashing

About this detail

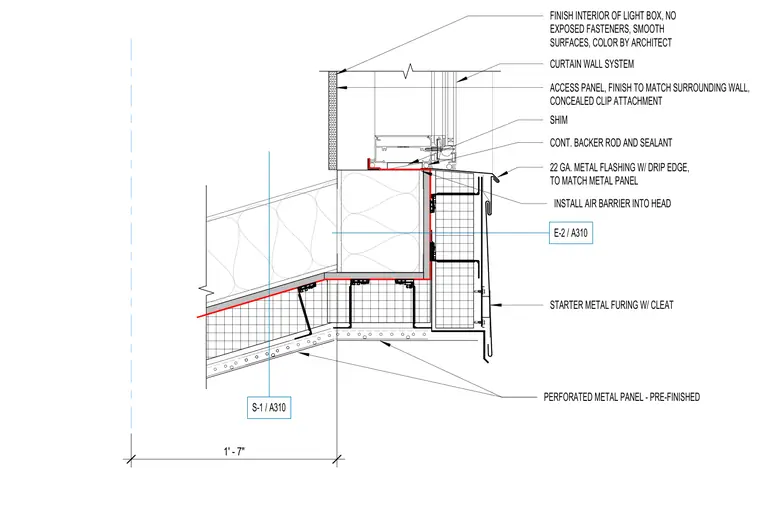

A curtain wall system integrates with a light box assembly using shims, continuous backer rod, and sealant at the sill transition. A twenty-two gauge metal flashing with a drip edge ties into the air barrier installed at the head. Exterior cladding consists of pre-finished perforated metal panels mounted on starter metal furing with concealed clips and cleats. An access panel with a concealed clip attachment is integrated to match the surrounding wall finish of the light box interior.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
