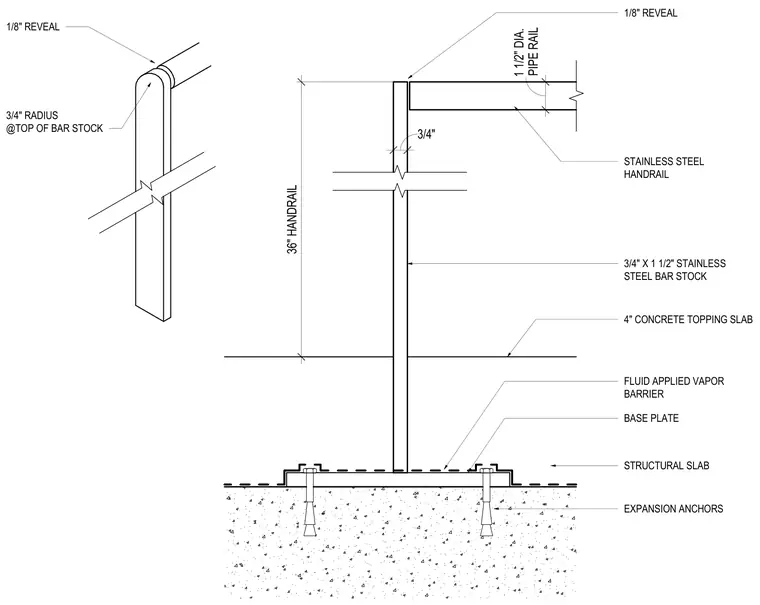

A 3/4 inch by 1 1/2 inch stainless steel bar stock post supports a 1 1/2 inch diameter stainless steel pipe handrail at a height of 36 inches above the finished floor. The post connects to a base plate secured to the structural slab using expansion anchors. A fluid-applied vapor barrier runs beneath the base plate assembly below a 4 inch concrete topping slab. The top of the bar stock features a 3/4 inch radius with 1/8 inch reveals at the pipe connection.
3/4" X 1 1/2" STAINLESS STEEL BAR STOCK 4" CONCRETE TOPPING SLAB EXPANSION ANCHORS STRUCTURAL SLAB BASE PLATE FLUID APPLIED VAPOR BARRIER STAINLESS STEEL HANDRAIL PIPE RAIL 1 1/2" DIA. 3/4" 36" HANDRAIL 1/8" REVEAL 3/4" RADIUS @TOP OF BAR STOCK 1/8" REVEAL
