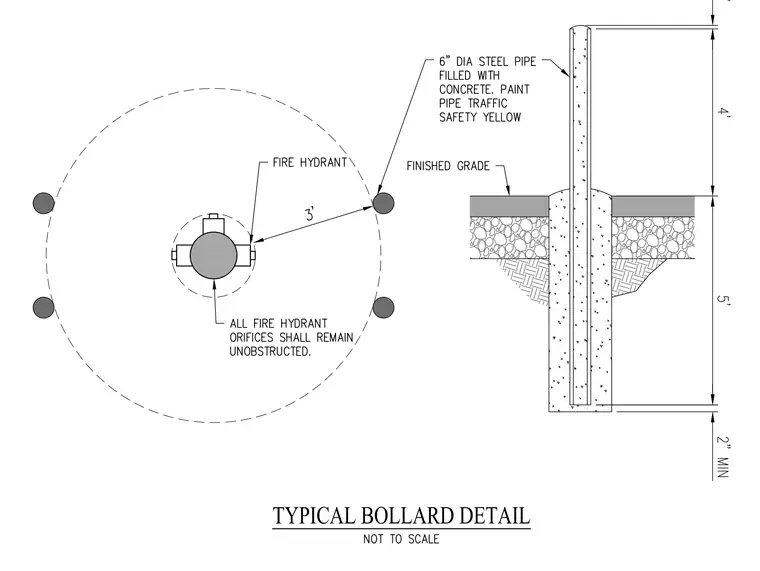

A six inch diameter steel pipe filled with concrete extends four feet above finished grade with a five foot embedment into a concrete footing requiring a two inch minimum clearance at the bottom. The steel pipe is painted traffic safety yellow. A plan view indicates four bollards positioned in a radial layout around a fire hydrant maintaining a three foot clearance distance with notes requiring all fire hydrant orifices to remain unobstructed.
