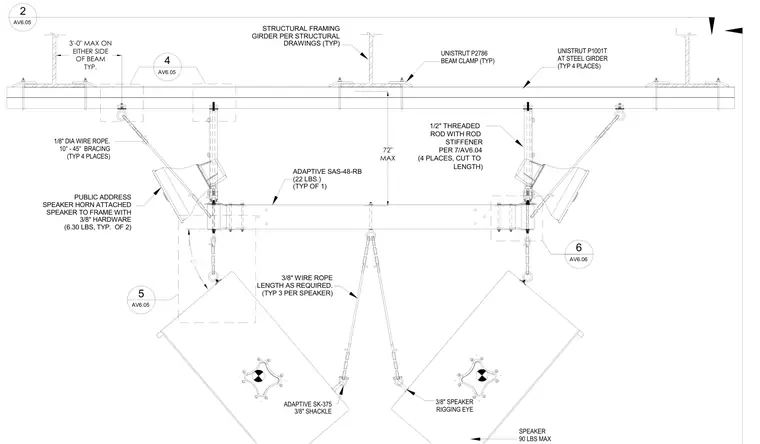

Public address speakers hang from overhead structural framing girders using Unistrut P1001T channels secured with P2786 beam clamps in four places. Four half-inch threaded rods with rod stiffeners support an Adaptive SAS-48-RB frame carrying the speaker units. Each speaker weighing up to ninety pounds attaches to the frame with 3/8-inch hardware and features a 40-degree adapter bracket along with three lengths of 3/8-inch wire rope with shackles tied to rigging eyes. Four 1/8-inch diameter wire rope braces at ten to forty-five degrees stabilize the assembly against lateral movement.
72" MAX 3'-0" MAX ON EITHER SIDE OF BEAM TYP. AV6.05 AV6.05 AV6.05 AV6.06 40° ADAPTIVE SAS-48-RB (22 LBS.) (TYP OF 1) 3/8" WIRE ROPE LENGTH AS REQUIRED. (TYP 3 PER SPEAKER) ADAPTIVE SK-375 3/8" SHACKLE 3/8" SPEAKER RIGGING EYE PUBLIC ADDRESS SPEAKER HORN ATTACHED SPEAKER TO FRAME WITH 3/8" HARDWARE (6.30 LBS, TYP. OF 2) SPEAKER 90 LBS MAX 1/2" THREADED ROD WITH ROD STIFFENER PER 7/AV6.04 (4 PLACES, CUT TO LENGTH) STRUCTURAL FRAMING GIRDER PER STRUCTURAL DRAWINGS (TYP) UNISTRUT P2786 BEAM CLAMP (TYP) UNISTRUT P1001T AT STEEL GIRDER (TYP 4 PLACES) 1/8" DIA WIRE ROPE. 10° - 45° BRACING (TYP 4 PLACES) 4 2 5 6
