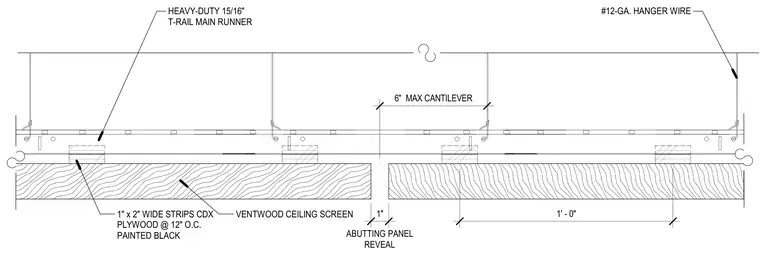

The suspended wood ceiling assembly consists of Ventwood ceiling screen panels supported by one-inch by two-inch wide strips of CDX plywood spaced at twelve inches on center and painted black. These wood strips attach to heavy-duty 15/16-inch T-rail main runners suspended by number 12 gauge hanger wires. An abutting panel reveal creates a one-inch gap between ceiling sections with a six-inch maximum cantilever. The hanger wires maintain a spacing of one foot zero inches.
HEAVY-DUTY 15/16" T-RAIL MAIN RUNNER 1" x 2" WIDE STRIPS CDX PLYWOOD @ 12" O.C. PAINTED BLACK VENTWOOD CEILING SCREEN #12-GA. HANGER WIRE 1' - 0" 6" MAX CANTILEVER 1" ABUTTING PANEL REVEAL
