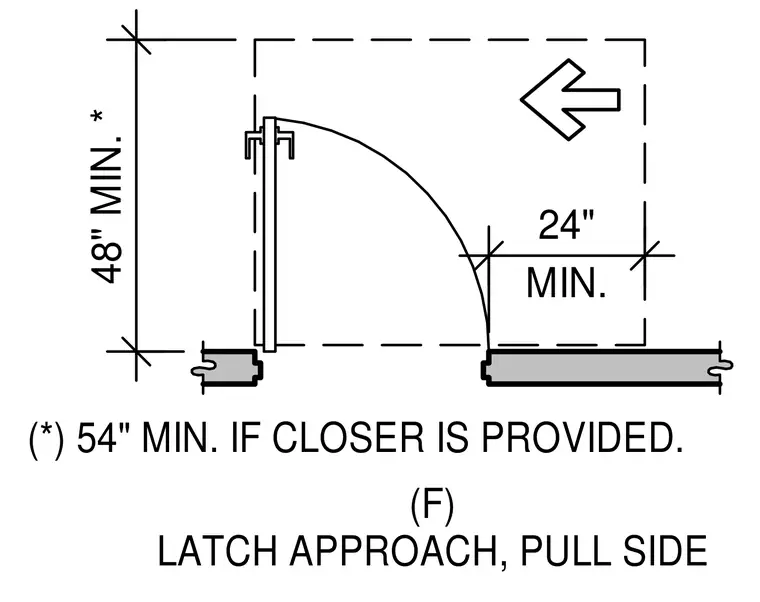

The pull side door clearance requires a forty-eight inch minimum approach perpendicular to the opening, increasing to fifty-four inches minimum if a closer is provided. A twenty-four inch minimum clearance is required parallel to the door on the latch side.
48" MIN. * 24" MIN. (F) LATCH APPROACH, PULL SIDE (*) 54" MIN. IF CLOSER IS PROVIDED.
