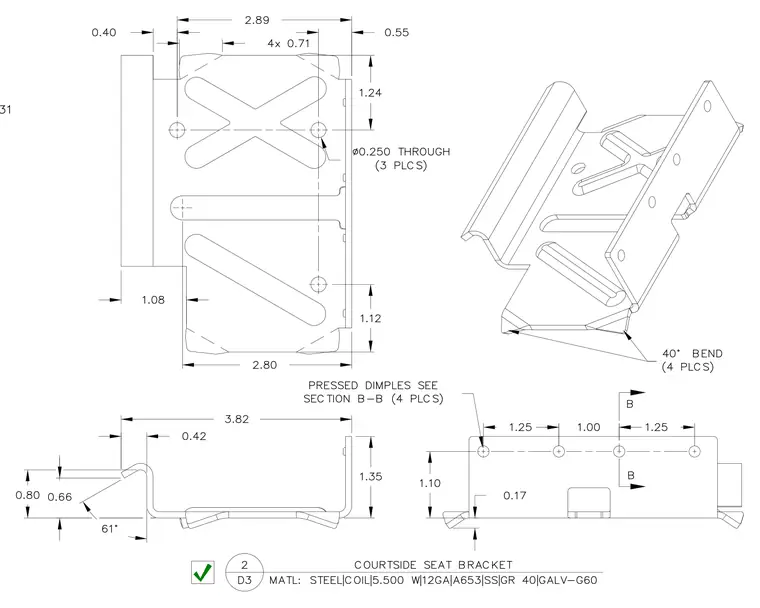

A formed courtside seat bracket is fabricated from 12-gauge ASTM A653 structural steel Grade 40 coil with a G60 galvanized finish. The part measures 5.500 inches wide and features pressed dimples at four places, four 40-degree bends, and three 0.250-inch diameter through-holes. Detailed orthogonal views and an isometric projection provide the complete geometric layout, material specifications, and fabrication dimensions.
2X ∅.31 1.35 61° 0.80 0.66 0.42 3.82 0.17 1.10 1.00 1.25 1.25 PRESSED DIMPLES SEE SECTION B-B (4 PLCS) B B 0.55 1.24 0.40 2.89 4x 0.71 1.12 1.08 2.80 ∅0.250 THROUGH (3 PLCS) 40° BEND (4 PLCS) COURTSIDE SEAT BRACKET 2 D3 MATL: STEEL|COIL|5.500 W|12GA|A653|SS|GR 40|GALV-G60 L 0 + + 0 0 0 + J I ( + + + A £ i V I I I II A [
