Parapet Fascia and Storefront Head Wall Section

Materials

Steel Cold-formed Steel Timber / Wood Glass / Glazing Aluminum Metal (misc.)Gypsum / Drywall

Elements

Walls Storefronts Facades / Cladding Roofs Ceilings Waterproofing / Flashing Insulation Anchors / Embeds Connections / Plates

Connections

Shear Stud / Composite

About this detail

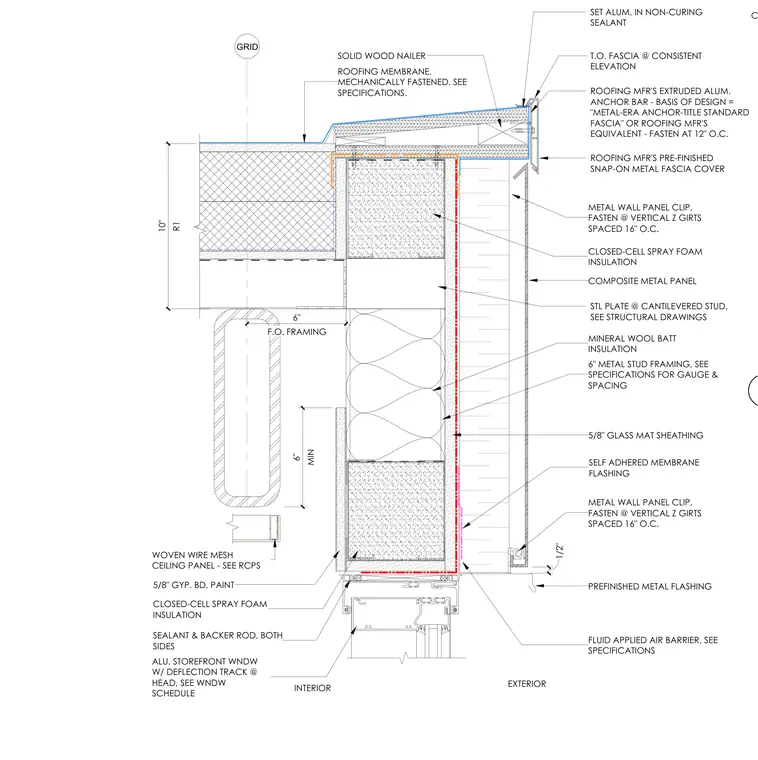

This wall section details a parapet roof edge condition transitioning down to an aluminum storefront window head. The assembly features a solid wood nailer over closed-cell spray foam insulation and a mechanically fastened roofing membrane at the top. An extruded aluminum anchor bar with a pre-finished snap-on metal fascia cover is set in non-curing sealant. The exterior wall incorporates composite metal panels attached with clips to vertical Z girts spaced sixteen inches on center, backed by a fluid-applied air barrier and five-eighths-inch glass mat exterior sheathing over six-inch metal stud framing with mineral wool batt insulation. The interior side is finished with five-eighths-inch gypsum board and paint. At the window head, a storefront window with a deflection track is installed below a structural steel plate at the cantilevered stud.
