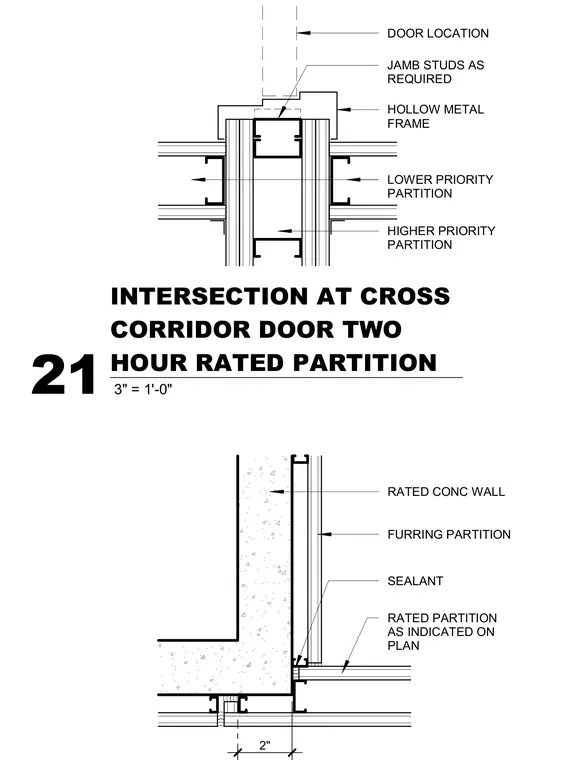

A rated concrete wall abuts a furring partition with a sealant joint, while a rated partition intersects at the frame as indicated on the plan. A cross corridor door frame is flanked by jamb studs as required with lower and higher priority partitions framing into it.
DOOR LOCATION JAMB STUDS AS REQUIRED HOLLOW METAL FRAME LOWER PRIORITY PARTITION HIGHER PRIORITY PARTITION 2" RATED CONC WALL FURRING PARTITION RATED PARTITION AS INDICATED ON PLAN SEALANT 3" = 1'-0" 21 INTERSECTION AT CROSS CORRIDOR DOOR TWO HOUR RATED PARTITION
