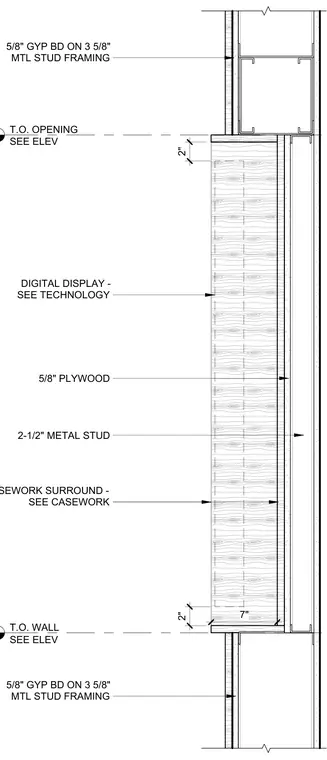

This architectural wall section details the recessed framing and casework surround for an elevator digital display mounted within a metal stud partition. The assembly consists of five-eighths-inch gypsum board over three-and-five-eighths-inch metal stud framing above and below the opening, transitioning to a recessed pocket backed by five-eighths-inch plywood and two-and-one-half-inch metal studs. Dimensions indicate a seven-inch depth for the display housing and two-inch clearances at the top of opening and top of wall elevations.
T.O. WALL SEE ELEV T.O. OPENING SEE ELEV CASEWORK SURROUND - SEE CASEWORK DIGITAL DISPLAY - SEE TECHNOLOGY 5/8" GYP BD ON 3 5/8" MTL STUD FRAMING 5/8" GYP BD ON 3 5/8" MTL STUD FRAMING 7" 2" 2" 5/8" PLYWOOD 2-1/2" METAL STUD
