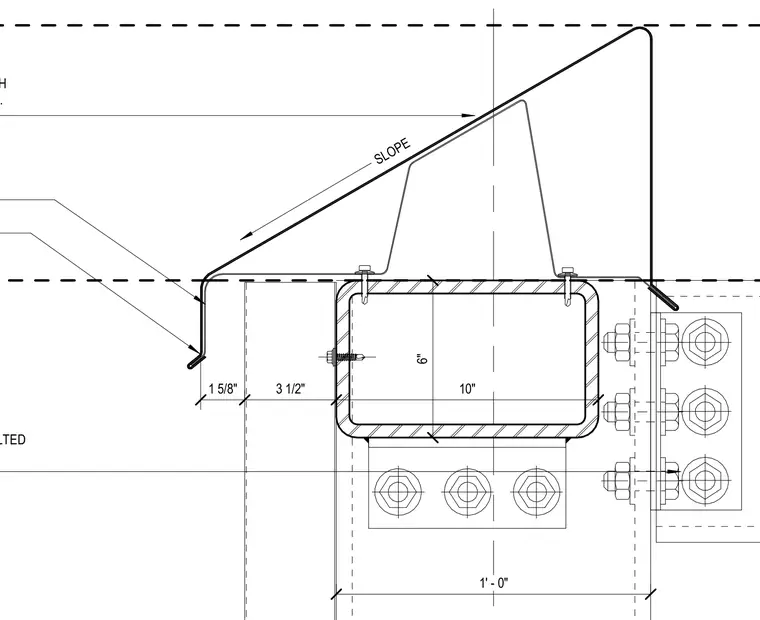

A sloped metal coping matches exterior metal panels and mounts over a six-inch by ten-inch hollow structural section. The structural frame includes bolted connections tying the assembly back to the main column. Self-tapping screws secure the coping components while structural bolts provide the primary column attachment.
1' - 0" STRUCTURAL FRAME BOLTED METAL COPING TO MATCH EXT-M1 PANELS W/ CONT. SLOPE 10" 3 1/2" 1 5/8" 6"
